Superfine Pre-alloyed Powder

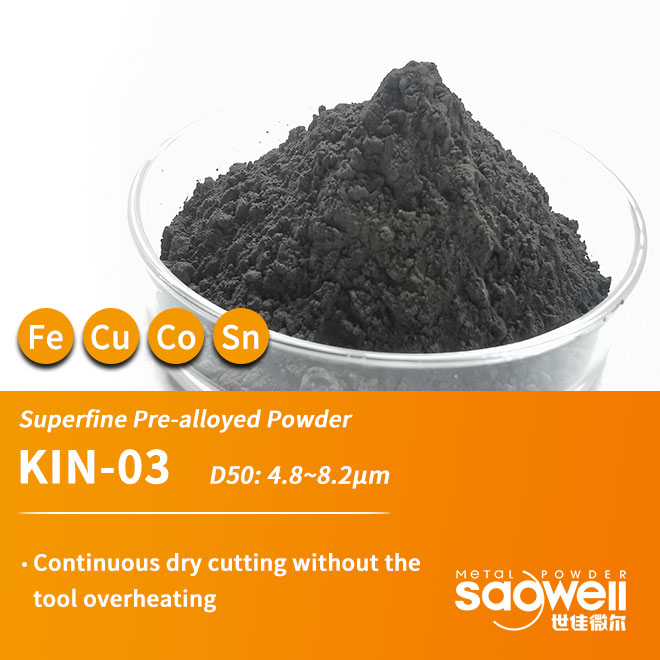

Superfine Pre-alloyed Powder: KIN-03

Superfine Fe-Cu-Co-Sn pre-alloyed powder, D50 is 4.8-8.2 microns. With good cold press formability. Used for diamond tools.

product details

Application

1. It has good cold press formability.
2. Suitable as the main material for ceramic and stone saw blades (with an addition amount of more than 45%).
3. Continuous dry cutting without the blade overheating.

The Best Sintering Range: 800-850℃

Data

Grade	Composition	Particle Size D50(μm)	Hardness (HRB)	Bending Strength (MPa)	Apparent Density (g/cm³)	Theoretical Density (g/cm³)
KIN-03	Fe Cu Co Sn	4.8-8.2	99-104	1325-1500	1.3-1.8	7.98

Related products

Grade	Composition	Particle Size D50(μm)	Hardness (HRB)	Bending Strength (MPa)	Apparent Density (g/cm³)	Theoretical Density (g/cm³)
SCF-07	Fe Cu Sn	4.5-8.0	95-110	600-850	1.4-2.4	8.06
SCF-10	Fe Cu Sn P	24.76	95-105	1150-1250	1.5-1.8	8.08
KIN-04E	Fe Cu Sn Zn	8.0-16.0	100-105	600-750	1.5-2.1	8.01

The above product data and application suggestions may change due to product optimization, performance improvement, and other reasons. The current content is for reference only. Please contact us for the latest data.
