Superfine Pre-alloyed Powder: SCF-10
Superfine Pre-alloyed Powder

Superfine Pre-alloyed Powder: SCF-10

SCF-10 is a formula based pre-alloyed powder for high-speed rail with low copper and low tin content. The powder particles are secondary agglomerated particles in a coral pile shape, with better filling and flowability than primary ultrafine powder.

Compared with traditional alloy powder, it has better cold pressing formability. It can achieve high mechanical performance under no or low pressure conditions, and can match current equipment and processes.

This material has good sintering activity and is suitable for hot pressing furnaces with a pressure of 2-7MPa. The optimal temperature range is 880-920 degrees Celsius, and the hardness can reach 85-95HRB

    Contact us
    product details

    Features

    1. Sharp and stable.
    2. It has good self shrinkage characteristics and is suitable for pressureless sintering process.
    3. It can be used as 100% diamond saw blade matrix powder and has high tooth resistance strength.
    4. Compared to traditional alloy powders, cold pressing has better formability.

    Application

    Applied to diamond tools such as stone saw blades, steel drills, etc., it can be added in large proportions or used 100%.

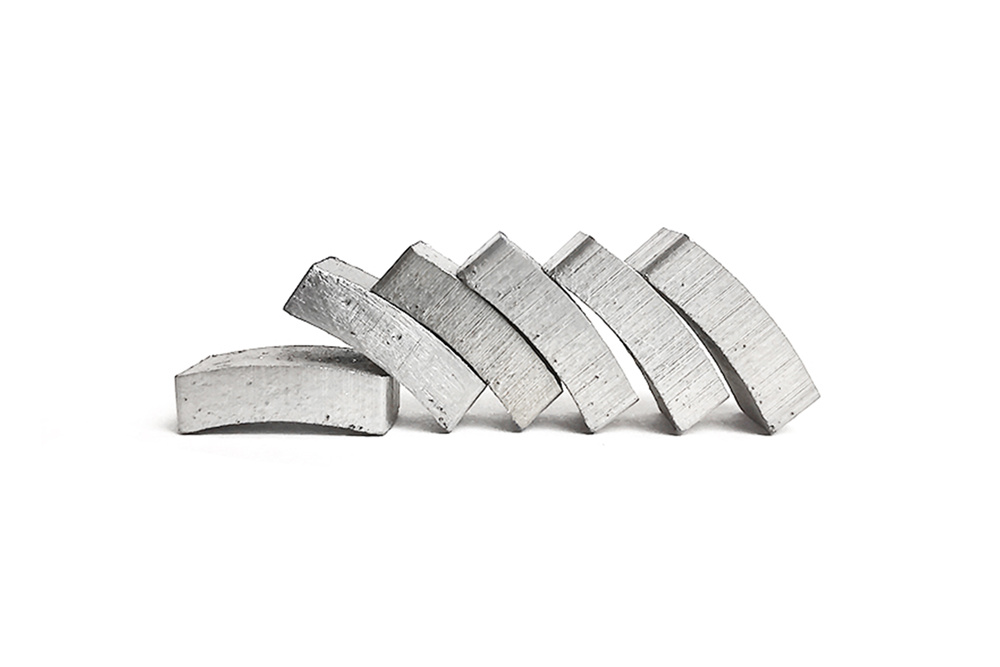

    • metal powder for diamond segment0wd
    • metal powder for diamond toolsish

    Data

    Grade

    Composition

    Particle Size
    D50(μm)

    Hardness
    (HRB)

    Bending Strength
    (MPa)

    Apparent Density
    (g/cm3)

    Theoretical Density
    (g/cm3)

    SCF-10

    Fe Cu Sn P

    24.76

    95-105

    1150-1250

    1.5-1.8

    8.08

    Related products

    Grade

    Composition

    Particle Size
    D50(μm)

    Hardness
    (HRB)

    Bending Strength
    (MPa)

    Apparent Density
    (g/cm3)

    Theoretical Density
    (g/cm3)

    SCF-07

    Fe Cu Sn

    4.5-8.0

    95-110

    600-850

    1.4-2.4

    8.06

    KIN-04B

    Fe Cu Sn

    12.0-18.0

    95-105

    680-750

    1.3-1.9

    8.0

    KIN-04E

    Fe Cu Sn Zn

    8.0-16.0

    100-105

    600-750

    1.5-2.1

    8.01
    The above product data and application suggestions may change due to product optimization, performance improvement, and other reasons. The current content is for reference only. Please contact us for the latest data.
