＜5 μm Iron Powder

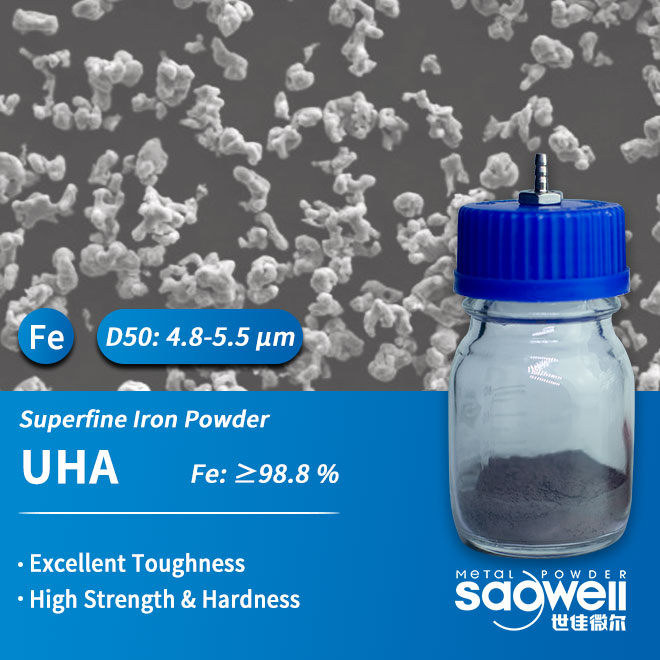

Superfine Pure Iron Powder: UHA

This material is characterized by high purity and exceptionally low oxygen content, making it ideal for advanced manufacturing processes.

During the hot pressing sintering stage, the material achieves a remarkable density of over 99%, ensuring a compact and robust final product. The average particle size is finely controlled at approximately 3000 mesh, contributing to its uniformity and consistency.

One of the standout features is its excellent toughness, which ensures durability and longevity in demanding applications. The strong adhesion between particles during the sintering process further enhances the material's structural integrity. The resulting sintered body closely mimics the properties of smelted metallurgy, providing a superior finish and quality.

This enhancement significantly elevates the overall product grade, especially in the production of high-performance tools, where precision and durability are critical. The combination of these attributes makes it a preferred choice in industries requiring top-tier materials.

product details

Features

1. Higher sharpness and longer lifespan, while reducing sintering temperature.

2. Can replace carbonyl iron powder.

3. High strength and hardness.

Application

For diamond tools, PM & MIM

Data

Grade	Fe(%)	O(%)	C(%)	N(%)	Particle Size D50 (μm)	Hardness (HRB)	Bending Strength (MPa)	Apparent Density (g/cm³)	Tap Density (g/cm³)
UHA	≥98.8	≤0.60	≤0.03	≤0.01	4.8-5.5	70-90	700-1000	1.2-1.6	2.3-3.2

Related products

Grade	Fe(%)	O(%)	C(%)	N(%)	Particle Size D50 (μm)	Hardness (HRB)	Bending Strength (MPa)	Apparent Density (g/cm³)	Tap Density (g/cm³)
EHA-T	≥98.8	≤0.50	≤0.03	≤0.01	4.0-8.0	75-85		1.0-1.5	2.3-3.2

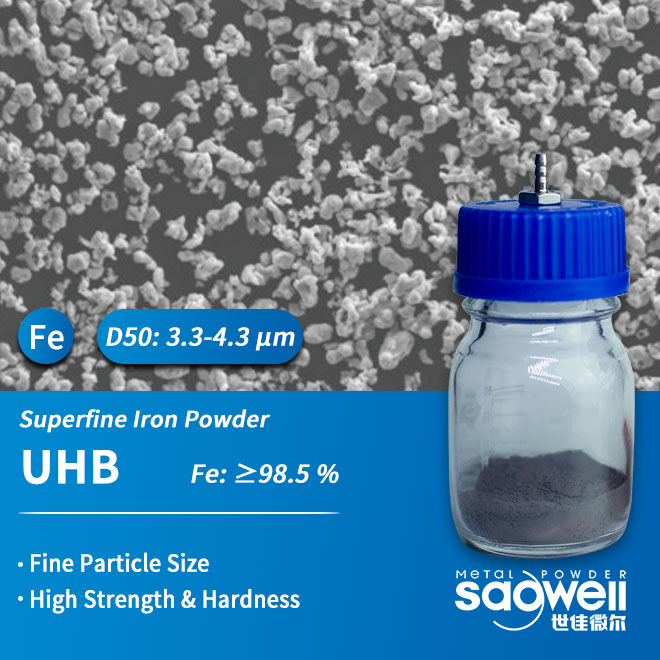

UHB	≥98.5	≤0.60	≤0.03	≤0.01	3.3-4.3	75-95	750-1100	0.9-1.8	2.4-3.6
UHD	≥98.85	≤0.70	≤0.03	≤0.01	7.0-9.0	55-85	550-950	1.9-2.5	3.2-4.2

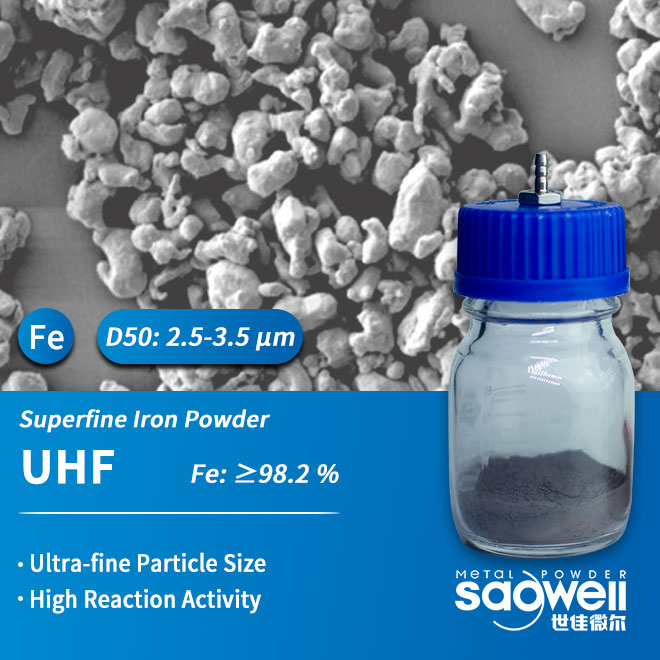

UHF	≥98.2	≤1.15	≤0.03	≤0.01	2.5-3.5	78-100	850-1150	0.8-1.5	2.0-3.2

The above product data and application suggestions may change due to product optimization, performance improvement, and other reasons. The current content is for reference only. Please contact us for the latest data.
