5~10 μm iron powder

Superfine Pure Iron Powder: UHD

Superfine iron powder UHD has a more regular original particle morphology, mostly solid particles with good fluidity and high porosity, with an average particle size of about 1500 mesh.

UHD has good toughness and can improve the holding force of diamond, thereby ensuring the utilization rate of diamond.

product details

Features

1. Low temperature sintering has high activity and uniform microstructure.

2. High cutting edge and sharpness.

Application

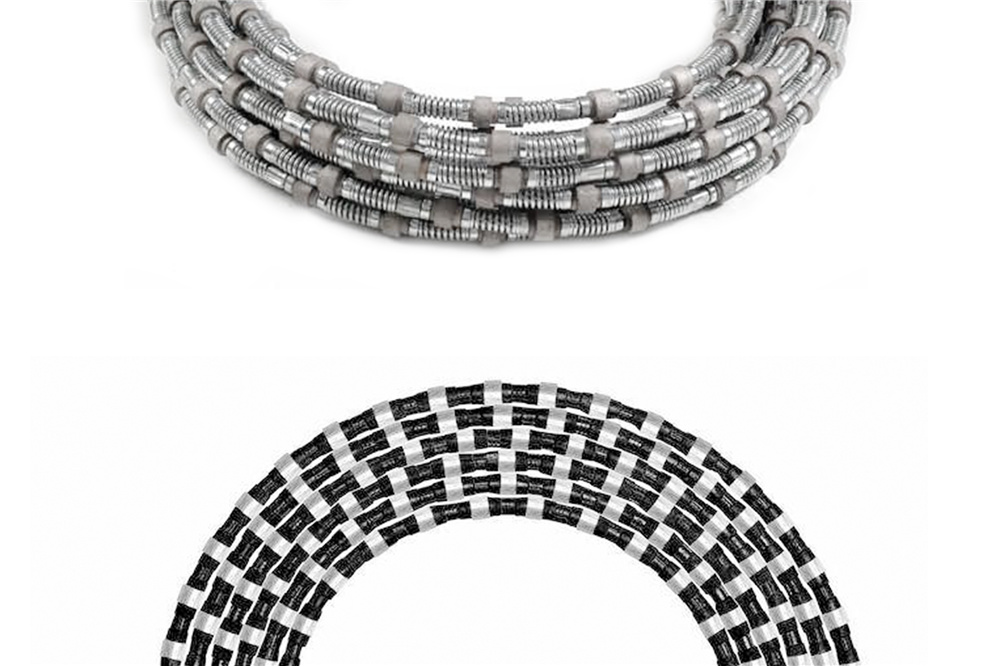

For diamond tools, PM & MIM

Data

Grade	Fe(%)	O(%)	C(%)	N(%)	Particle Size D50 (μm)	Hardness (HRB)	Bending Strength (MPa)	Apparent Density (g/cm³)	Tap Density (g/cm³)
UHD	≥98.85	≤0.70	≤0.03	≤0.01	7.0-9.0	55-85	550-950	1.9-2.5	3.2-4.2

Related products

Grade	Fe(%)	O(%)	C(%)	N(%)	Particle Size D50 (μm)	Hardness (HRB)	Bending Strength (MPa)	Apparent Density (g/cm³)	Tap Density (g/cm³)

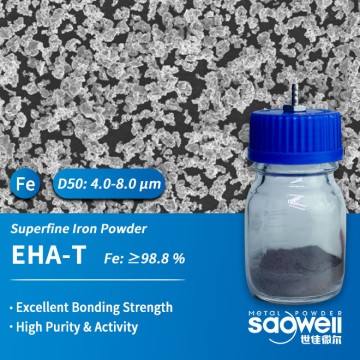

EHA-T	≥98.8	≤0.50	≤0.03	≤0.01	4.0-8.0	75-85		1.0-1.5	2.3-3.2
UHA	≥98.8	≤0.60	≤0.03	≤0.01	4.8-5.5	70-90	700-1000	1.2-1.6	2.3-3.2
UHB	≥98.5	≤0.60	≤0.03	≤0.01	3.3-4.3	75-95	750-1100	0.9-1.8	2.4-3.6
UHF	≥98.2	≤1.15	≤0.03	≤0.01	2.5-3.5	78-100	850-1150	0.8-1.5	2.0-3.2

The above product data and application suggestions may change due to product optimization, performance improvement, and other reasons. The current content is for reference only. Please contact us for the latest data.
